V230 Pressure Regulating Valve
Product overview
Product model: V230
Nominal diameter: DN15mm~250mm
Nominal pressure: PN1.6, 4.0MPa
Applicable temperature: liquid ≤ 140℃, gas ≤ 80℃
Main material: cast iron, cast steel, cast stainless steel
Design standard: GB/T17213
Inspection standard: GB/T4213
Flange standard: JIS B220, JB/T79, ANSI B16.5-1981, GB/T9113, HG20594-97, HG20618-97, etc
V230 Pressure Regulating Valve product description:
V230 Pressure Regulating Valve produced and sold by Baigang valve group,It is composed of valve body, valve seat, valve core parts and other components. It is an energy-saving product that automatically adjusts the pressure without external energy and only depends on the pressure change of the medium itself to be adjusted. It can be used as a pressure control device for non-corrosive (Max temperature 350℃) liquid, gas and steam and other media.Widely used in petroleum, chemical, metallurgy, light industry and other industrial sectors and city heating, heating system.
◆ Model, specifications
|
category |
Pressure control valve |
Differential pressure control valve |
||||||
|
Valve pressure regulator |
Valve pressure regulator |
Differential pressure rise valve closed |
Pressure differential valve opens |
|||||
|
Hard seal |
Soft seal |
Hard seal |
Soft seal |
Hard seal |
Soft seal |
Hard seal |
Soft seal |
|
|
model |
V230 D01 |
V230D01 |
V230D02 |
V231D02 |
V230D03 |
V231D03 |
V230D04 |
V231D04 |
|
specification |
DN15-250 |
|||||||
V230 Pressure Regulating Valve technical Parameters:
|
Nominal diameter mm |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
|
|
Rated flow coefficient Kvs |
3.2 |
5 |
8 |
12.5 |
20 |
32 |
50 |
80 |
125 |
160 |
320 |
450 |
630 |
|
|
Nominal pressure MPa |
1.6, 4.0 |
|||||||||||||
|
Z value |
0.6 |
0.6 |
0.6 |
0.55 |
0.55 |
0.5 |
0.5 |
0.45 |
0.4 |
0.35 |
0.3 |
0.2 |
0.2 |
|
|
The highest working temperature ℃ |
V230 V231 |
Liquid ≤ 140, gas ≤ 80 |
||||||||||||
|
Hard seal V230 |
With isolation tank ≤ 200 |
With isolation tank and extension pieces ≤ 300 * |
||||||||||||
|
With isolation tank and heat sink ≤ 200 |
||||||||||||||
|
Pressure balance element |
Corrugated pipe |
Rolling the diaphragm |
||||||||||||
|
Flange standard |
DIA (also available on request flange standard) |
|||||||||||||
|
Body material |
PN16: cast iron (working temperature ≤ 200 ℃); PN4.0: cast steel, cast stainless steel (working temperature ≤ 350 ℃) |
|||||||||||||
|
Spool material |
Stainless steel; soft seal stainless steel inlaid rubber ring |
|||||||||||||
|
The maximum working pressure MPa |
Nominal pressure (Note △ Pmax and the relationship between working pressure and working temperature) |
|||||||||||||
Note:
1, the liquid> 140 ℃, gas> 80 ℃ when the valve flip;
2, Z value: noise measurement coefficient, the value used to measure
the size of the noise, the specific calculation see the self-regulating
valve selection guide.

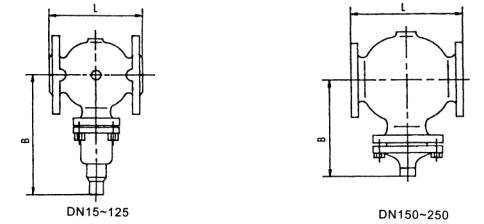

◆ Dimension
|
Nominal diameter mm |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
|
L mm |
150 |
160 |
180 |
200 |
230 |
290 |
310 |
350 |
400 |
480 |
600 |
730 |
|
B mm |
212 |
238 |
238 |
240 |
240 |
275 |
275 |
380 |
380 |
295 |
325 |
372 |
|
Approximate weight kg |
6.7 |
9.7 |
13 |
14 |
17 |
29 |
33 |
60 |
70 |
80 |
140 |
220 |
◆ D02 (D04) actuator size and weight
|
Effective area cm 2 |
32 |
80 |
250 |
630 |
|
D mm |
172 |
172 |
263 |
380 |
|
H mm |
435 |
430 |
470 |
520 |
|
Approximate weight kg |
7.5 |
7.5 |
13 |
28 |
|
Effective area cm 2 |
32 |
80 |
250 |
630 |
|
D mm |
172 |
172 |
263 |
380 |
|
H mm |
440 |
435 |
440 |
520 |
|
Approximate weight kg |
7.5 |
7.5 |
13 |
28 |
Note: Direct acting self-operated valve of the total height and weight for the control valve and actuator height and weight.
Reminder:
All text, data and pictures in this article are for reference only.To see more details of the V230 Pressure Regulating Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
